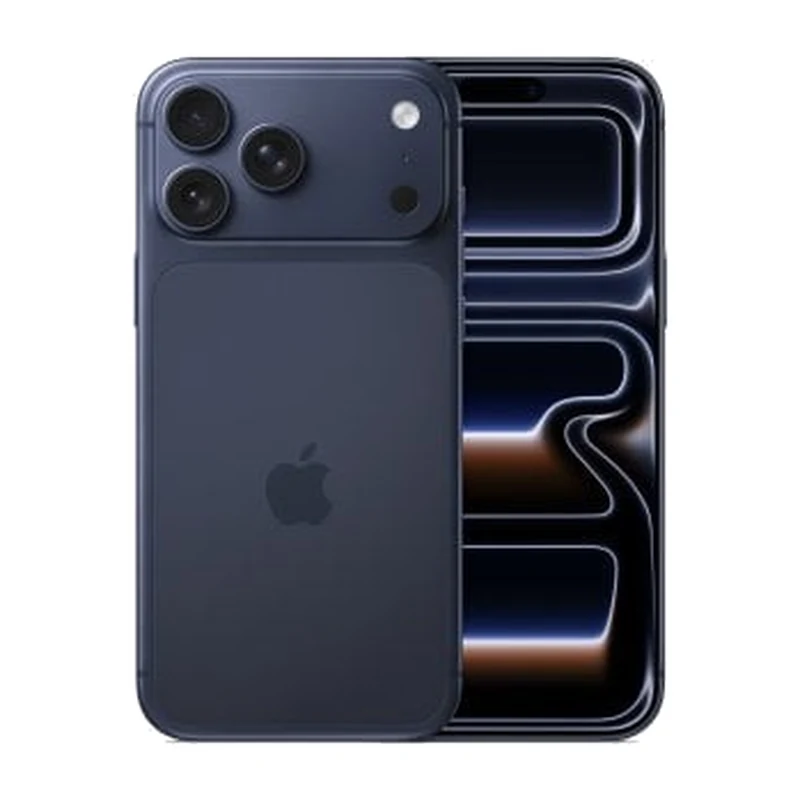

Apple iPhone 17 Pro Max

Image gallery

Image gallery

Structure

Size

78.0 mm • 163.4 mm • 8.8 mm

Weight

233 g

Usable surface

91 %

Materials

Aluminium alloy , Ceramics

Resistance certificates (dust, water)

IP68

Colors

White Blue Orange

Repairability

Class A B C D E

Drop resistance

Class A B C D E • 180 drops without defects

Screen

Diagonal

6.9"

Type

Oled Super Retina XDR

Aspect Ratio

19.5:9

Resolution

1320 x 2868 px • QHD

Density

458 ppi • Very high density

Others

Hole-punch Notch HLG Refresh rate 120 Hz Brightnes 1000 cd/m² (typ) Max brightness HBM - 1600 cd/m² Peak brightness - 3000 cd/m² 2000000:1 contrast ratio Always-On Display HDR10+ DCI-P3 True Tone display Super Retina XDR Dolby Vision Scratch resistant Corning Gorilla Glass Ceramic Shield Capacitive Multi-touch Oleophobic (lipophobic) coating Frameless Haptic Touch LTPO (Low Temperature PolySilicon oxide)

Processor

Model

Apple A19 Pro

CPU

6Core TSMC N3P

Type

Hexa-Core

Nanometer

3 nm

Frequency

4 GHz

64 Bits

Yes

Graphics

GPU

6 core GPU

RAM

RAM

12 GB

Type

--

Antutu

Score

2.606.807 • Antutu v11 Overall performance better than 95% of devices

Storage

Capacity

256 GB

Type

NVMe

SD Slot

No

Security

Fingerprint

No

Sensors

Fingerprint

No

Proximity

Yes

Light sensor

Yes

Accelerometer

Yes

Compass

Yes

Gyroscope

Yes

Barometer

Yes

LiDAR Scanner

Yes

Audio

Dolby Atmos Noise cancellation microphone Stereo Speakers 3 microphones

Notifications LED

--

Triple rear camera

Standard

1

Resolution

48 Mpx

Aperture

ƒ/ 1.6

Sensor

Sony IMX903

Type

CMOS

Sensor size

1/1.3"

Pixel size

1.22 µm

Pixel Binning

1-4 (2x2)

Flash

Dual LED

Optical Stabilisation

Yes

Slow Motion Video

Yes, 240 fps

Features

Cinematic Mode Noise reduction Face unlock Pro Video Mode 4K Video Digital zoom Optical zoom OIS on optical zoom Lens Triple camera Digital image stabilization Optical Stabilization (OIS) Ultra stable video Autofocus Touch focus Continuous autofocus Manual focus Phase detection autofocus (PDAF) NPU AI Engine Continuous shooting Geotagging Panorama HDR Face detection White balance settings ISO settings Exposure compensation Scene mode Self-timer RAW Night Mode

Selfie

Resolution

18 Mpx

Aperture

ƒ/ 1.9

Sensor

Sony IMX914

Type

CMOS

Pixel size

0.96 µm

Bands

5G

n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n26 (850), n28b (700), n28a (700), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n53 (2400), n66 (1700), n70 (1700), n75 (1500), n77 (3700), n78 (3500), n79 (4700)

4G LTE

B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B30 (2300), B32 (1500), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B53 (TDD 2400), B66 (1700/2100)

3G

B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)

2G

B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type

Dual SIM Dual Standby (Nano SIM / eSIM + eSIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards

802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 6E , WiFi 7 (802.11be)

Others

Dual band Wi-Fi Hotspot Wi-Fi MiMO

Bluetooth

Version

Bluetooth 6.0 LELow energy consumption

Profiles

A2DP (Advanced Audio Distribution Profile) LE (Low Energy) APT-x

Navigation

Supports

GPS, A-GPS, GLONASS, Beidou, QZSS, Galileo, GPS (L1+L5), BeiDou (B1), Galileo (E1+E5a), NavIC System, QZSS (L1 + L5)

USB

Charging

Yes

Mass Storage

Yes

USB Type C

Yes

USB Host 3.2

Yes

SAR

--

--
