Oppo Reno Ace 2 · Unboxing TN

Technical sheet

Brand

Brand: Oppo
Aliases: PDHM00, Oppo Ace2
Best Sellers: Oppo Find X9 Pro From € 1153 OPPO Find X9 Ultra From € 1449 Oppo Find X9 From € 854 Oppo Reno14 From € 459 Oppo Reno13 Pro From € 420

Release Date

Release date: April 2020, 6 years ago

Design & Materials

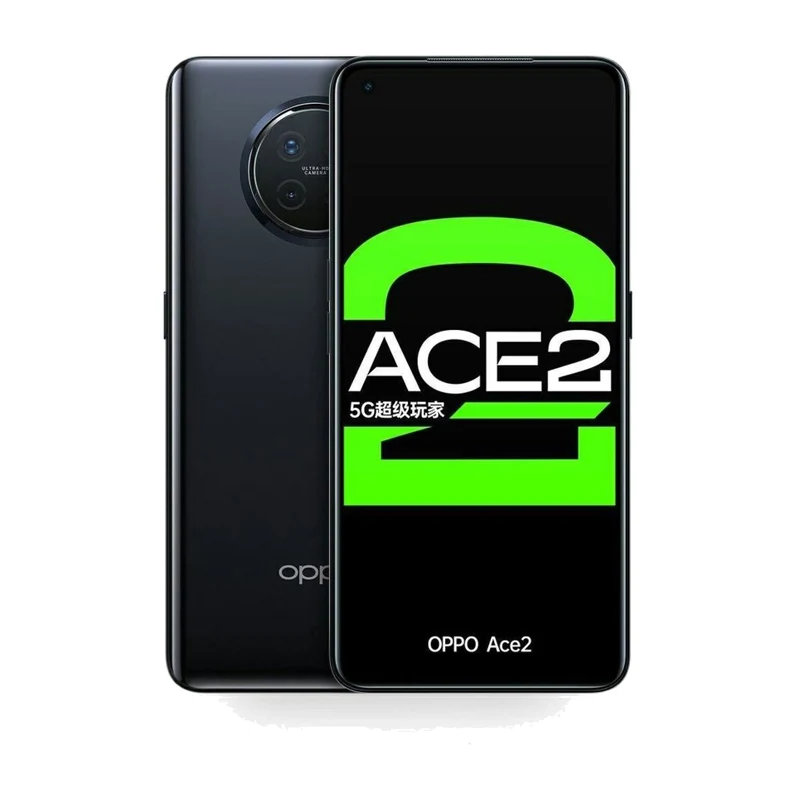

Image gallery

Image gallery

Structure

Size: 75.4 mm • 160.0 mm • 8.6 mm
Weight: 185 g
Usable surface: 85 %
Materials: Aluminium alloy
Colors: Silver Gray Purple

Screen

Diagonal: 6.55"
Type: Oled
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 402 ppi • Very high density
Others: Hole-punch Notch Refresh rate 90 Hz Touch sampling rate 180 Hz Brightnes 500 cd/m² (typ) Max brightness HBM - 800 cd/m² Peak brightness - 1100 cd/m² TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 Scratch resistant Corning Gorilla Glass 5 Capacitive Multi-touch X-Reality display Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 865
CPU: 1x Cortex•A77 2.84 GHz + 3x Cortex•A77 2.4 GHz + 4x Cortex•A55 1.8 GHz
Type: Octa-Core
Nanometer: 7 nm
Frequency: 2.84 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 650 600 Mhz

RAM

RAM: 8 GB

Camera

Quad rear camera

Standard: 1
Resolution: 48 Mpx
Aperture: ƒ/ 1.7
Sensor: Sony IMX586 Exmor RS
Type: CMOS
Sensor size: 1/2"
Pixel size: 0.80 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n41 (2500), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B20 (800), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800), B34 (TD 2000), B39 (TD 1900+)
2G: CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax)

Battery

Capacity: 4000 mAh
Type: Li-Polymer
Fast charge: Yes , 65.0W
Others: Wireless charging Reverse charging Wireless Reverse charging Non-removable
Extra: 2x2000mAh battery 40W wireless charging Reverse charging Qi BPP 10W standard

Software

Operating System: Android 10 Q Android 10
Google Services: Without Google Mobile services
