OnePlus Ace 5 Racing Edition · Unboxing TN

Technical sheet

Brand

Brand: OnePlus
Aliases: 一加 Ace 5 竞速版, PLF110
Best Sellers: OnePlus 15 From € 764 OnePlus 15R From € 556 OnePlus Nord CE5 From € 279 OnePlus Nord 6 From € 405 OnePlus Nord 5 From € 313

Release Date

Release date: May 2025, 1 year ago
Launch price: CN¥ 1,799.00 ($ 268.33)

Design & Materials

Image gallery

Image gallery

Structure

Size: 76.0 mm • 163.6 mm • 8.2 mm
Weight: 200 g
Usable surface: 89 %
Materials: Plastic
Resistance certificates (dust, water): IP64

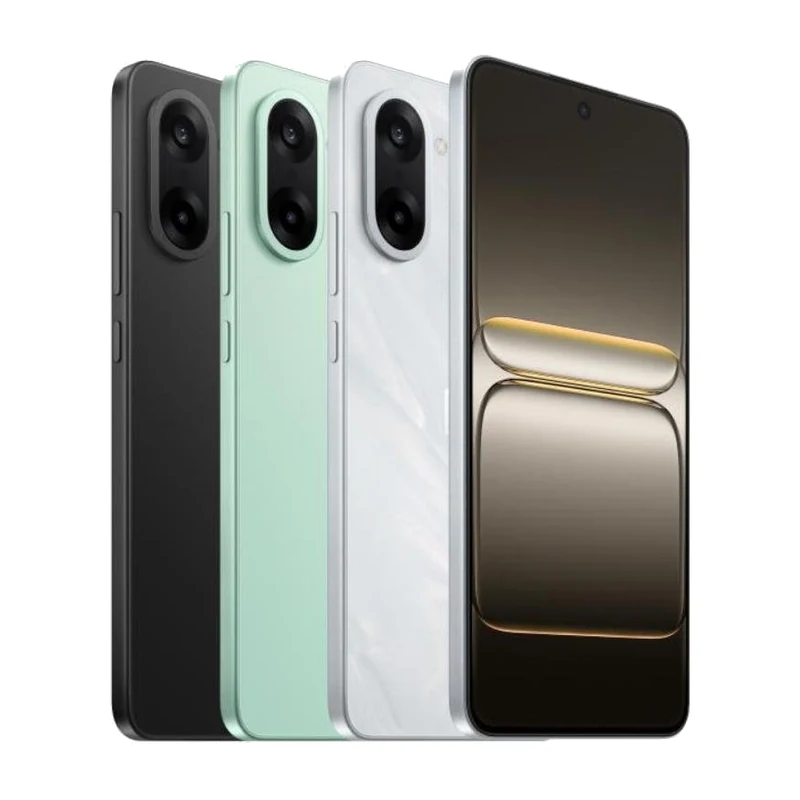

Colors: Black White Green

Screen

Diagonal: 6.77"
Type: AMOLED
Aspect Ratio: 20:9
Resolution: 1080 x 2392 px • FHD+
Density: 388 ppi • High Density
Others: Hole-punch Notch SGS Certified 2160 Hz PWM Refresh rate 120 Hz Max brightness HBM - 800 cd/m² Peak brightness - 1300 cd/m² Always-On Display TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 10 Bits panel Scratch resistant 3D curved glass screen Armor glass Capacitive Multi-touch Frameless LTPO (Low Temperature PolySilicon oxide)

Performance & Hardware

Processor

Model: MediaTek Dimensity 9400e
CPU: 1xCortex X4 3,4GHZ + 3xCortex X4 2,85GHZ + 4xCortex A720 2GHZ
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.4 GHz
64 Bits: Yes

Graphics

GPU: Immortalis-G720 MC12

RAM

RAM: 12 GB

Camera

Double rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony LYT-600
Type: CMOS
Sensor size: 1/1.95"
Pixel size: 0.70 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n8 (900), n20 (800), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B8 (900), B19 (800), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B66 (1700/2100)
3G: B1 (2100), B5 (850), B8 (900)
2G: B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)

Battery

Capacity: 7100 mAh
Type: Si-Carbon Li-Ion
Fast charge: Yes , 80.0W
Others: Non-removable

Software

Operating System: Android 16 ColorOS 16 (Android 16)
Google Services: Without Google Mobile services
