ASUS Zenfone 11 Ultra · Unboxing TN

Technical sheet

Brand

Brand: Asus
Aliases: AI2401
Best Sellers: Asus ZenFone Pegasus 4A Asus Rog Phone 9 FE Asus ZenFone Max (2016) Asus ZenFone Max Asus ZenFone 4 Max ZC520KL

Release Date

Release date: March 2024, 2 years ago

Design & Materials

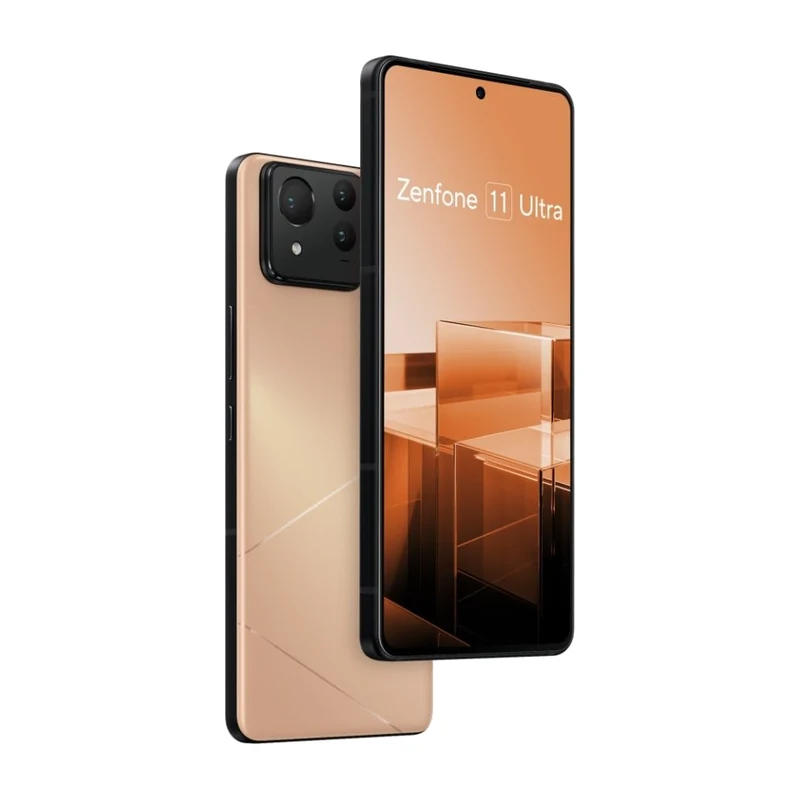

Image gallery

Image gallery

Structure

Size: 76.8 mm • 163.8 mm • 8.9 mm
Weight: 225 g
Usable surface: 88 %
Materials: Plastic , Corning Gorilla Glass Victus 2
Resistance certificates (dust, water): IP68
Colors: Black Blue Gray Orange

Screen

Diagonal: 6.78"
Type: Super AMOLED
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 388 ppi • High Density
Others: Hole-punch Notch External display type - Super AMOLED 1-120 Hz refresh rate 107% NTSC Refresh rate 144 Hz Max brightness HBM - 1600 cd/m² Peak brightness - 2500 cd/m² Always-On Display HDR10+ DCI-P3 Full sRGB standard sRGB standard Scratch resistant Corning Gorilla Glass Victus 2 Capacitive Multi-touch Frameless LTPO (Low Temperature PolySilicon oxide)

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8 Gen3
CPU: 1x3.3GHz Cortex•X4 + 3x3.2 GHz Cortex•A720 + 2x3.0 GHz Cortex•A720 + 2x2.3 GHz Cortex•A520
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.3 GHz
64 Bits: Yes

Graphics

GPU: Adreno 750

RAM

RAM: 12 GB

Camera

Triple rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.9
Sensor: Sony IMX890
Type: CMOS
Sensor size: 1/1.56"
Pixel size: 1.00 µm
Pixel Binning: 1-4 (2x2)
Flash: Dual LED

Connectivity

Bands

5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n18 (850), n20 (800), n25 (1900), n26 (850), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n77 (3700), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3700), B48 (TDD 3600), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Battery

Capacity: 5500 mAh
Type: Li-Polymer
Fast charge: Yes , 65.0W
Others: Wireless charging Reverse charging Non-removable
Extra: 15W wireless charging 10W reverse wired

Software

Operating System: Android 16 Android 16
Google Services: With Google Mobile Services
Widevine L1: Yes
Updates: OS updates: 2 years Security updates: 2 years
