Technical sheet

Brand

Brand: Asus
Aliases: I005DZ
Best Sellers: Asus ZenFone Pegasus 4A Asus Rog Phone 9 FE Asus ZenFone Max (2016) Asus ZenFone Max Asus ZenFone 4 Max ZC520KL

Release Date

Release date: August 2021, 5 years ago

Design & Materials

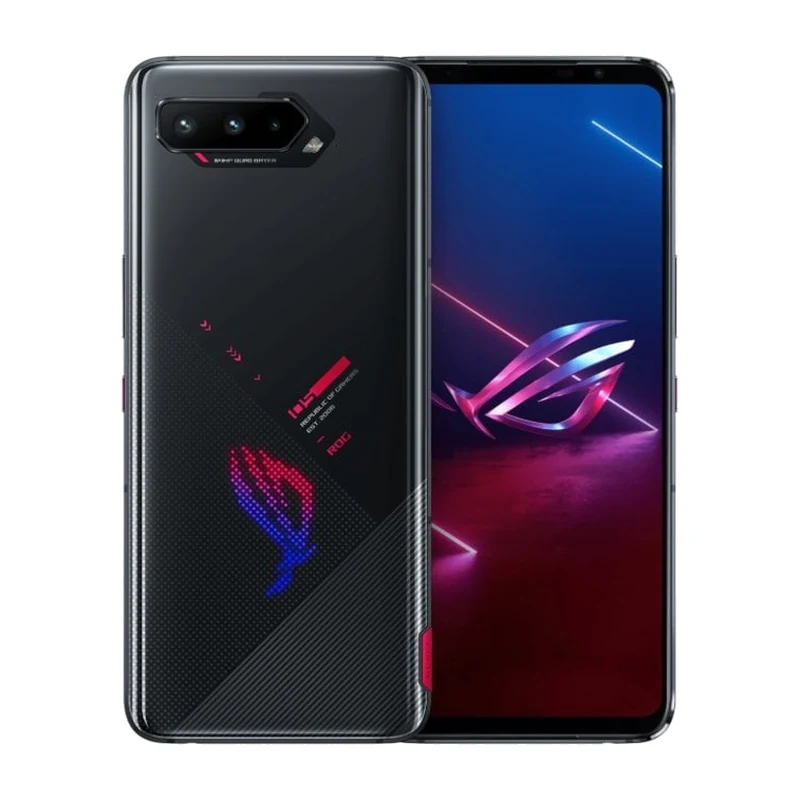

Image gallery

Image gallery

Structure

Size: 77.0 mm • 173.0 mm • 9.9 mm
Weight: 238 g
Usable surface: 82 %
Materials: Glass
Colors: Black

Screen

Diagonal: 6.78"
Type: AMOLED Samsung
Aspect Ratio: 20:9
Resolution: 1080 x 2448 px • FHD+
Density: 395 ppi • High Density
Others: Without Notch Refresh rate 144 Hz Touch sampling rate 300 Hz Always-On Display TÜV Rheinland Eye Comfort Certification HDR10+ Scratch resistant Corning Gorilla Glass Victus Capacitive Multi-touch Physical buttons 1 ms response time

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 888+
CPU: 1x Cortex X1 3.0GHz + 3x Cortex A78 2.42GHz + 4x Cortex A55 1.8GHz
Type: Octa-Core
Nanometer: 5 nm
Frequency: 3 GHz
64 Bits: Yes

Graphics

GPU: Adreno 660

RAM

RAM: 16 GB

Camera

Triple rear camera

Standard: 1
Resolution: 64 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony IMX686 Exmor RS
Type: CMOS
Sensor size: 1/1.7"
Pixel size: 0.80 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n7 (2600), n8 (900), n20 (800), n28b (700), n28a (700), n38 (2600), n41 (2500), n77 (3700), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B18 (800), B19 (800), B20 (800), B26 (850), B28b (700), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600)
3G: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, 802.11ad , WiFi 6 (802.11ax)

Battery

Capacity: 6000 mAh
Type: Li-Polymer
Fast charge: Yes , 65.0W
Others: Bypass Charging Reverse charging Non-removable
Extra: Reverse charging 10W

Software

Operating System: Android 13 Tiramisu Android 13
Google Services: Without Google Mobile services
