ASUS Rog Phone 3 Strix Edition · Unboxing TN

Technical sheet

Brand

Brand: Asus
Aliases: ZS661KS-1A002EU
Best Sellers: Asus ZenFone Pegasus 4A Asus Rog Phone 9 FE Asus ZenFone Max (2016) Asus ZenFone Max Asus ZenFone 4 Max ZC520KL

Release Date

Release date: July 2020, 6 years ago

Design & Materials

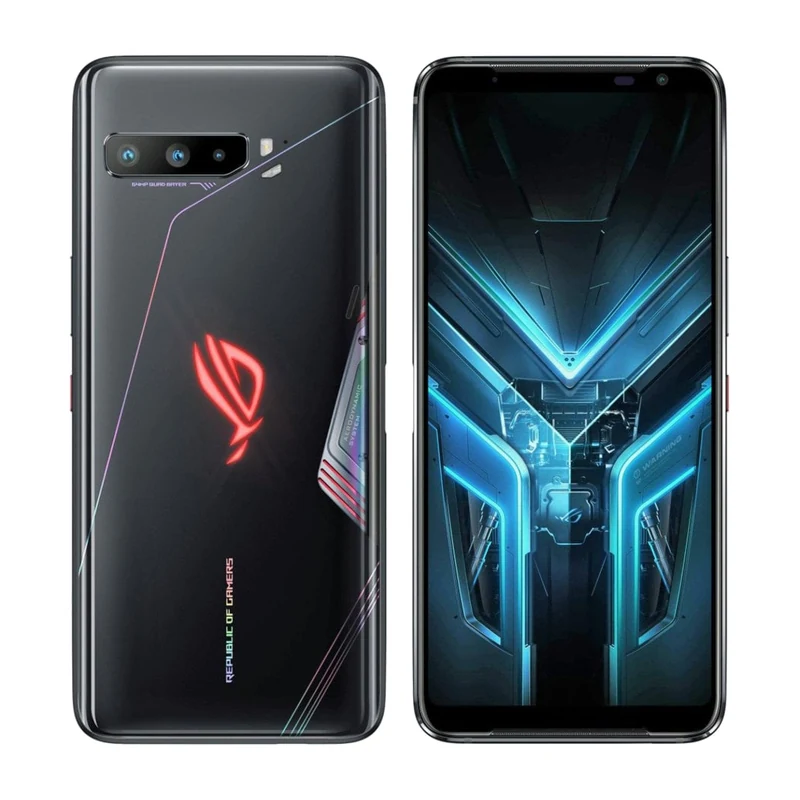

Image gallery

Image gallery

Structure

Size: 78.0 mm • 171.0 mm • 9.8 mm
Weight: 240 g
Usable surface: 79 %
Materials: Glass
Colors: Gray

Screen

Diagonal: 6.59"
Type: AMOLED
Aspect Ratio: 19.5:9
Resolution: 1080 x 2340 px • FHD+
Density: 391 ppi • High Density
Others: Without Notch Refresh rate 144 Hz Touch sampling rate 270 Hz Peak brightness - 1000 cd/m² Max brightness HBM - 650 cd/m² 1000000:1 contrast ratio Always-On Display TÜV Rheinland Eye Comfort Certification HDR10 HDR10+ DCI-P3 sRGB 153.7% 108.9% NTSC Color LED Notifications Scratch resistant 2.5D curved glass screen Corning Gorilla Glass 6 Capacitive Multi-touch Physical buttons Bluelight Filter 1 ms response time

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 865
CPU: 1x Cortex•A77 2.84 GHz + 3x Cortex•A77 2.4 GHz + 4x Cortex•A55 1.8 GHz
Type: Octa-Core
Nanometer: 7 nm
Frequency: 2.84 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 650 600 Mhz

RAM

RAM: 8 GB

Camera

Triple rear camera

Standard: 1
Resolution: 64 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony IMX686 Exmor RS
Type: CMOS
Sensor size: 1/1.7"
Pixel size: 0.80 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n41 (2500), n77 (3700), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B20 (800), B28b (700), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500)
3G: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS A-F), B5 (850), B8 (900), B34 (TD 2000), B38 (TD 2600)
2G: CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, 802.11ad , WiFi 6 (802.11ax)

Battery

Capacity: 6000 mAh
Type: Li-Polymer
Fast charge: Yes , 30.0W
Others: Bypass Charging Reverse charging Non-removable
Extra: Reverse charging 10W

Software

Operating System: Android 11 Red Velvet Cake Android 11
Google Services: With Google Mobile Services
Widevine L3: Yes
