ZTE Axon 30s · Unboxing TN

Technical sheet

Brand

Brand: ZTE
Aliases: A2322, 中兴Axon 30S
Best Sellers: ZTE Axon 41 Ultra 5G ZTE Blade A76 From € 142 ZTE Blade V2021 ZTE Open C ZTE Blade A73

Release Date

Release date: September 2022, 4 years ago

Design & Materials

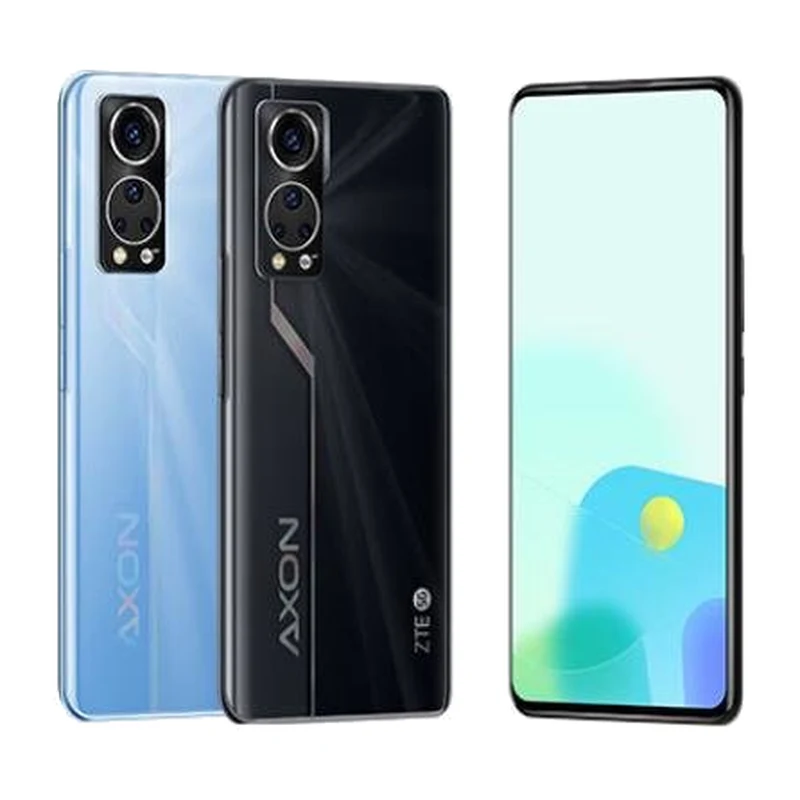

Image gallery

Image gallery

Structure

Size: 77.8 mm • 170.2 mm • 7.8 mm
Weight: 189 g
Usable surface: 85 %
Materials: Plastic , Glass
Colors: Black Gray

Screen

Diagonal: 6.92"
Type: AMOLED
Aspect Ratio: 21:9
Resolution: 1080 x 2460 px • FHD+
Density: 388 ppi • High Density
Others: Hole-punch Notch Refresh rate 120 Hz Touch sampling rate 360 Hz 1000000:1 contrast ratio Always-On Display TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 100% NTSC 10 Bits panel Scratch resistant Corning Gorilla Glass 2.5D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 870 (SM8250-AC)
CPU: 1x Cortex•A77 3.20 GHz + 3x Cortex•A77 2.4 GHz + 4x Cortex•A55 1.8 GHz
Type: Octa-Core
Nanometer: 7 nm
Frequency: 3.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 650

RAM

RAM: 8 GB

Camera

Quad rear camera

Standard: 1
Resolution: 64 Mpx
Aperture: Unknow
Sensor: Sony IMX682 Exmor RS
Type: CMOS
Sensor size: 1/1.7"
Pixel size: 0.80 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n28b (700), n28a (700), n41 (2500), n78 (3500)
4G LTE: B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B20 (800), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax)

Battery

Capacity: 4200 mAh
Type: Li-Polymer
Fast charge: Yes , 55.0W
Others: Non-removable

Software

Operating System: Android 11 Red Velvet Cake Android 11
Google Services: Without Google Mobile services
