Technical sheet

Brand

Brand: Xiaomi
Aliases: 小米12S Ultra, 2203121C
Best Sellers: Xiaomi 18 Pro Max From € 1143 Xiaomi 17T Pro From € 634 Xiaomi 17T From € 484 Xiaomi 17 From € 658 Xiaomi Redmi Note 15 Pro 5G From € 250

Release Date

Release date: July 2022, 4 years ago

Design & Materials

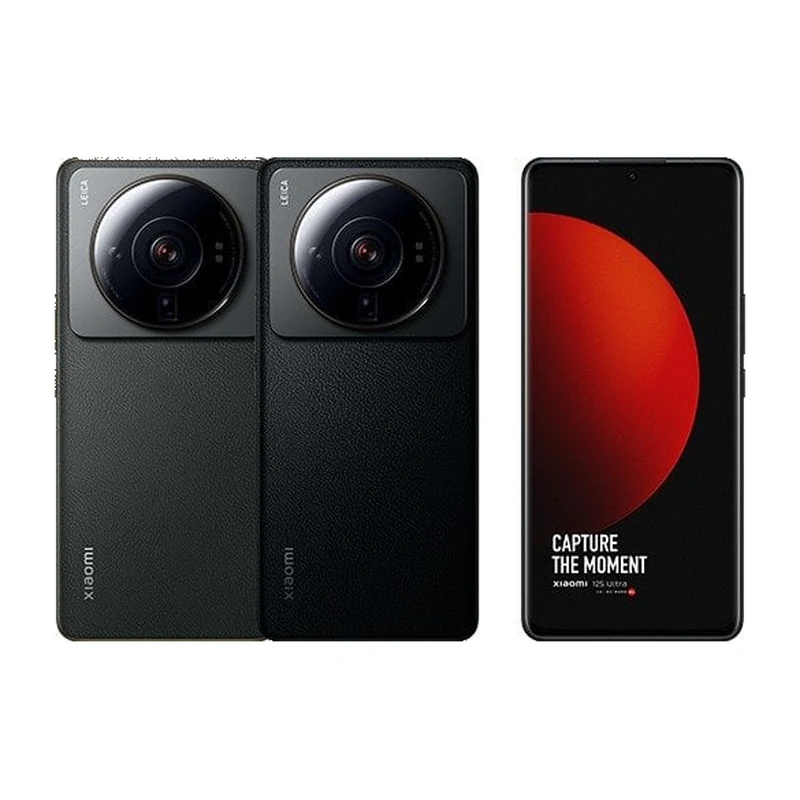

Image gallery

Image gallery

Structure

Size: 75.0 mm • 163.2 mm • 9.1 mm
Weight: 225 g
Usable surface: 89 %
Materials: Aluminium alloy , Leather
Resistance certificates (dust, water): IP68
Colors: Black Green

Screen

Diagonal: 6.73"
Type: AMOLED Samsung E5
Aspect Ratio: 20:9
Resolution: 1440 x 3200 px • WQHD+
Density: 518 ppi • Very high density
Others: Hole-punch Notch Refresh rate 120 Hz Variable refresh rate 1 Hz Touch sampling rate 240 Hz Peak brightness - 1500 cd/m² Max brightness HBM - 1000 cd/m² 8000000:1 contrast ratio HDR10+ DC dimming 10 Bits panel Dolby Vision Scratch resistant Dual Edge display Corning Gorilla Glass Victus Capacitive Multi-touch Frameless LTPO 2.0 (Low Temperature PolySilicon oxide)

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8+ Gen1
CPU: 1x3.2 GHz Cortex•X2 +3x2.8 GHz Cortex•A710 + 4x2.0 GHz Cortex•A510
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 730 875 MHz

RAM

RAM: 8 GB

Camera

Quad rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.9
Sensor: Sony IMX989
Type: CMOS
Sensor size: 1"
Pixel size: 1.60 µm
Pixel Binning: 1-4 (2x2)
Flash: Dual LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n8 (900), n28a (700), n38 (2600), n40 (2300), n41 (2500), n77 (3700), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B18 (800), B19 (800), B26 (850), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800)
2G: CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax)

Battery

Capacity: 4860 mAh
Type: Si-O2
Fast charge: Yes , 67.0W
Others: Wireless charging Reverse charging Wireless Reverse charging Non-removable
Extra: Surging P1 charging chip Surging G1 battery management chip 50W wireless charge 10W wireless reverse charge

Software

Operating System: Android 14 Upside-down cake HyperOS (Android 14)
Google Services: Without Google Mobile services
Updates: OS updates: 3 years Security updates: 4 years
