TCL 60 SE · Unboxing TN

Technical sheet

Brand

Brand: TCL
Aliases: T517H
Best Sellers: TCL P80 Ultra From € 599 TCL P80 Pro From € 429 TCL NxtPaper 70 Pro From € 269 TCL 60 Ultra NxtPaper From € 334 TCL K70 From € 136

Release Date

Release date: May 2025, 1 year ago

Design & Materials

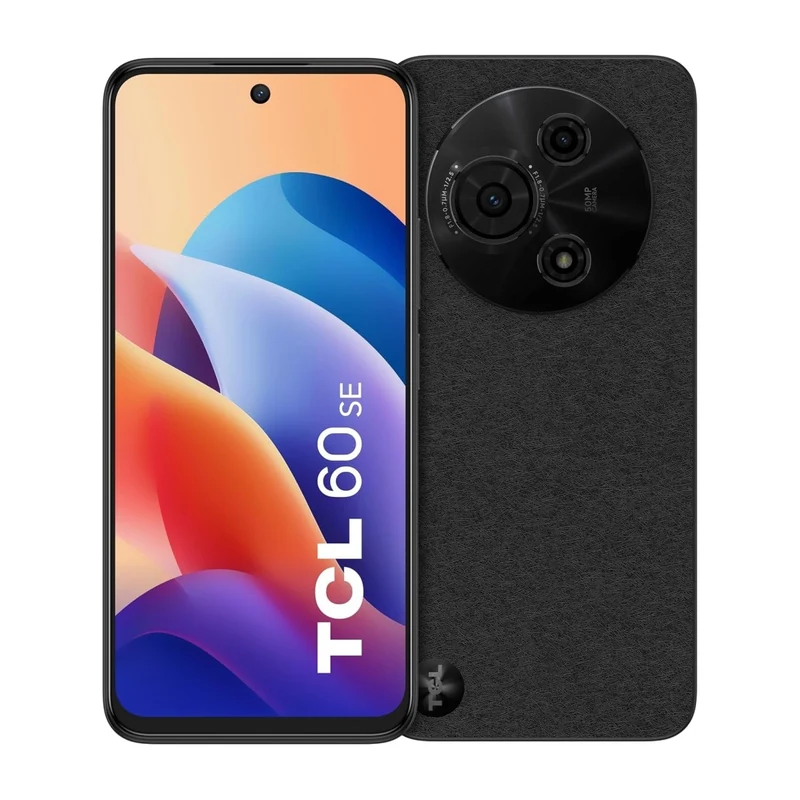

Image gallery

Image gallery

Structure

Size: 76.2 mm • 165.6 mm • 8.3 mm
Weight: 190 g
Usable surface: 84 %
Materials: Plastic
Resistance certificates (dust, water): IP54
Colors: Black White
Repairability: Class A B C D E
Drop resistance: Class A B C D E • 180 drops without defects

Screen

Diagonal: 6.7"
Type: LCD IPS
Aspect Ratio: 20:9
Resolution: 720 x 1600 px • HD+
Density: 262 ppi • Medium Density
Others: Hole-punch Notch Brightnes 480 cd/m² (typ) 1500:1 contrast ratio TÜV Rheinland Eye Comfort Certification DCI-P3 2.5D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: MediaTek Helio G81 (MT6769)
CPU: 2x Cortex•A75 2.0 GHz + 6x Cortex•A55 1.7 GHz
Type: Octa-Core
Nanometer: 12 nm
Frequency: 2 GHz
64 Bits: Yes

Graphics

GPU: ARM Mali-G52 MC2

RAM

RAM: 8 GB

Camera

Double rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: --
Type: CMOS
Pixel size: 0.70 µm
Flash: LED
Optical Stabilisation: No
Slow Motion Video: No, 30 fps

Connectivity

Bands

4G LTE: B1 (2100), B2 (1900), B3 (1800), B5 (850), B12 (700), B13 (700), B17 (700), B20 (800), B26 (850), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B68 (700)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac
Others: Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display

Battery

Capacity: 5200 mAh
Type: Li-Polymer
Fast charge: Yes , 18.0W
Others: Bypass Charging Reverse charging Non-removable
Efficiency: B G A
Runtime per charge: ~ 49h
Charge cycles: 1000 cycles

Software

Operating System: Android 15 Android 15
Google Services: With Google Mobile Services
Widevine L1: Yes
