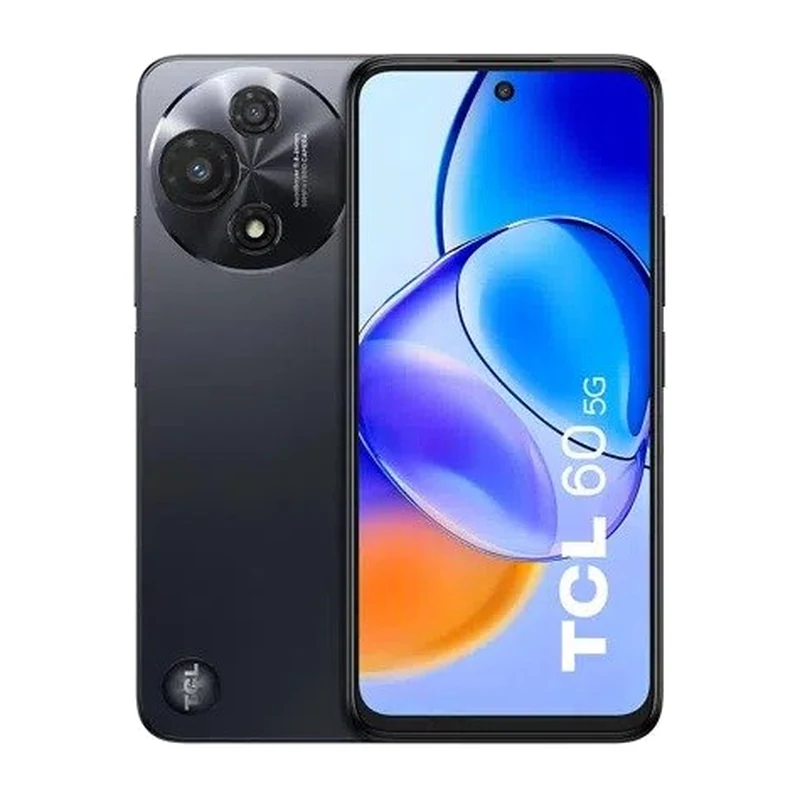

TCL 60 5G · Unboxing TN

Technical sheet

Brand

Brand: TCL
Best Sellers: TCL P80 Ultra From € 599 TCL P80 Pro From € 429 TCL NxtPaper 70 Pro From € 269 TCL 60 Ultra NxtPaper From € 334 TCL K70 From € 136

Release Date

Release date: May 2025, 1 year ago

Design & Materials

Image gallery

Image gallery

Structure

Size: 76.2 mm • 165.6 mm • 8.2 mm
Weight: 190 g
Usable surface: 84 %
Materials: Plastic
Resistance certificates (dust, water): IP54
Colors: Blue Gray

Screen

Diagonal: 6.7"
Type: LCD IPS
Aspect Ratio: 20:9
Resolution: 720 x 1600 px • HD+
Density: 262 ppi • Medium Density
Others: Hole-punch Notch Refresh rate 120 Hz Brightnes 480 cd/m² (typ) Peak brightness - 900 cd/m² 1500:1 contrast ratio TÜV Rheinland Eye Comfort Certification DCI-P3 2.5D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: MediaTek Dimensity 6300
CPU: 2x2.4 GHz ARM Cortex•A76 +6x2.0 GHz ARM Cortex•A55
Type: Octa-Core
Nanometer: 6 nm
Frequency: 2.4 GHz
64 Bits: Yes

Graphics

GPU: Arm Mali-G57 MC2

RAM

RAM: 6 GB

Camera

Double rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: --
Type: CMOS
Pixel size: 0.70 µm
Flash: LED
Optical Stabilisation: No
Slow Motion Video: No, 30 fps

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n8 (900), n20 (800), n26 (850), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n75 (1500), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B5 (850), B8 (900), B12 (700), B13 (700), B17 (700), B20 (800), B26 (850), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B68 (700)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + eSIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac

Battery

Capacity: 5200 mAh
Type: Li-Polymer
Fast charge: Yes , 18.0W
Others: Bypass Charging Reverse charging Non-removable

Software

Operating System: Android 15 Android 15
Google Services: With Google Mobile Services
Widevine L1: Yes
