TCL 20 Pro 5G · Unboxing TN

Technical sheet

Brand

Brand: TCL
Best Sellers: TCL P80 Ultra From € 599 TCL P80 Pro From € 429 TCL NxtPaper 70 Pro From € 269 TCL 60 Ultra NxtPaper From € 334 TCL K70 From € 136

Release Date

Release date: April 2021, 5 years ago

Design & Materials

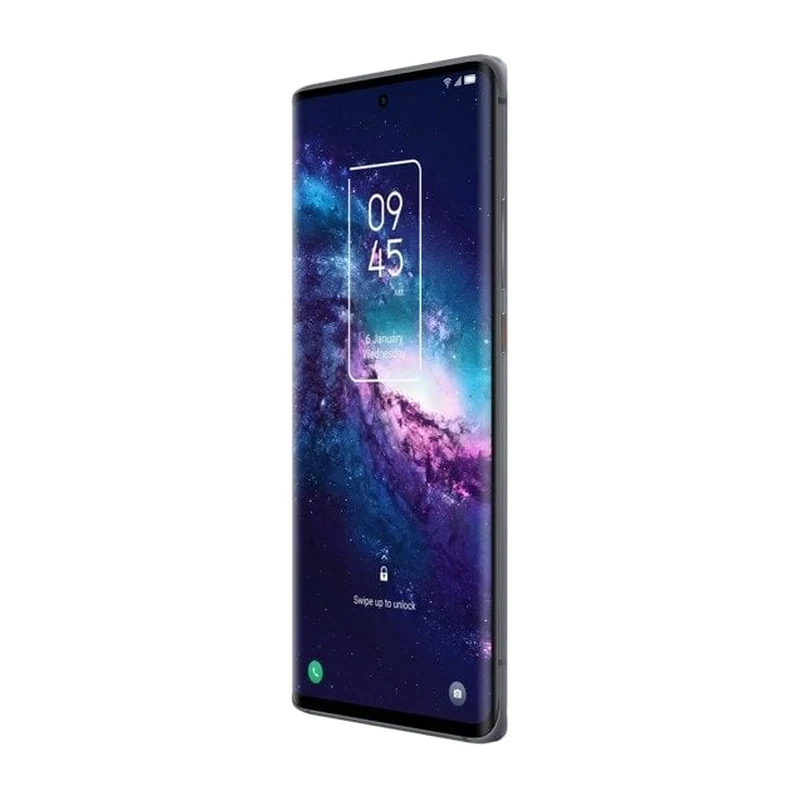

Image gallery

Image gallery

Structure

Size: 73.0 mm • 164.2 mm • 9.0 mm
Weight: 190 g
Usable surface: 89 %
Materials: Metal
Resistance certificates (dust, water): IP52
Colors: Blue Gray

Screen

Diagonal: 6.67"
Type: AMOLED
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 395 ppi • High Density
Others: Hole-punch Notch Max brightness HBM - 700 cd/m² 20000000:1 contrast ratio TÜV Rheinland Eye Comfort Certification HDR10 DCI-P3 Scratch resistant 2.5D curved glass screen Dual Edge display Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 750G
CPU: 2x Kryo 570 (Cortex•A77) 2.2 GHz + 6x Kryo 570 (Cortex•A55) 1.8GHz
Type: Octa-Core
Nanometer: 8 nm
Frequency: 2.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 619

RAM

RAM: 6 GB

Camera

Quad rear camera

Standard: 1
Resolution: 48 Mpx
Aperture: ƒ/ 1.79
Sensor: Sony IMX582 Exmor RS
Type: CMOS
Sensor size: 1/2.96"
Pixel size: 0.80 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n28b (700), n28a (700), n40 (2300), n41 (2500), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B20 (800), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B40 (TDD 2300), B41 (TDD 2500)
3G: B1 (2100), B2 (1900), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac

Battery

Capacity: 4500 mAh
Type: Li-Ion
Fast charge: Yes , 18.0W
Others: Wireless charging Non-removable
Extra: 15W wireless charging

Software

Operating System: Android 11 Red Velvet Cake Android 11
Google Services: With Google Mobile Services
