Realme 10 Pro Plus 5g · Unboxing TN

Technical sheet

Brand

Brand: realme
Aliases: RMX3687, RMX3686, Realme 10 Pro Plus 5G
Best Sellers: realme GT8 Pro From € 715 realme GT 7 From € 390 realme 16 Pro+ 5G From € 367 realme GT 7T From € 326 realme 14 Pro From € 236

Release Date

Release date: November 2022, 3 years ago

Design & Materials

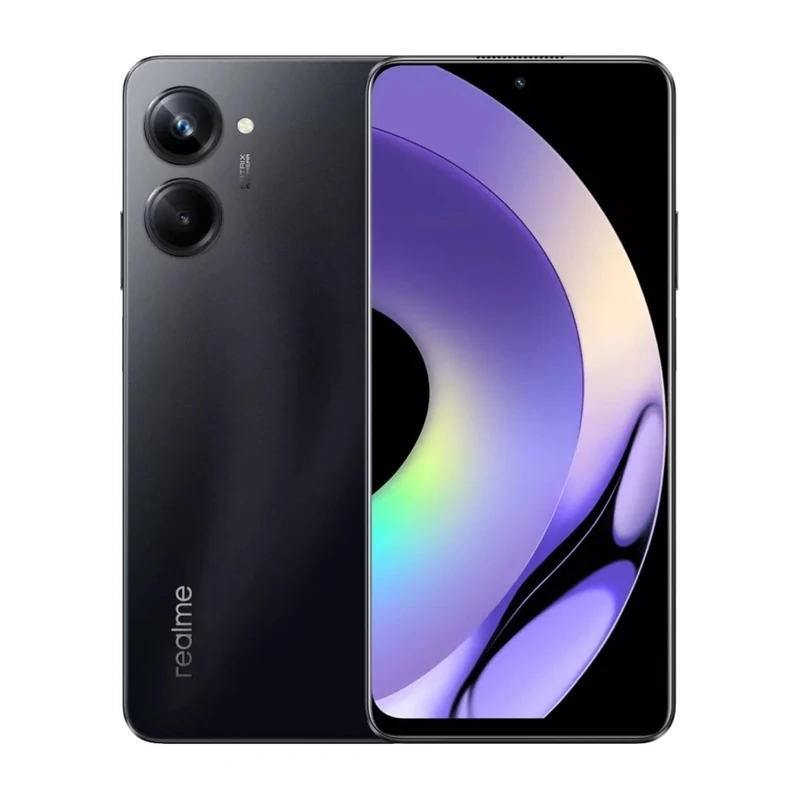

Image gallery

Image gallery

Structure

Size: 73.9 mm • 161.5 mm • 7.8 mm
Weight: 173 g
Usable surface: 90 %
Materials: Polycarbonate
Colors: Black Blue Silver Storm

Screen

Diagonal: 6.7"
Type: Oled
Aspect Ratio: 20:9
Resolution: 1080 x 2412 px • FHD+
Density: 394 ppi • High Density
Others: Hole-punch Notch 2160 Hz PWM Refresh rate 120 Hz Touch sampling rate 360 Hz Max brightness HBM - 800 cd/m² 5000000:1 contrast ratio TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 10 Bits panel Scratch resistant Dual Edge display Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: MediaTek Dimensity 1080 (MT6877V)
CPU: 2x2.6 GHz ARM Cortex•A78+6x 2.0 GHz ARM Cortex•A55
Type: Octa-Core
Nanometer: 6 nm
Frequency: 2.6 GHz
64 Bits: Yes

Graphics

GPU: Mali-G68 MC4

RAM

RAM: 8 GB

Camera

Triple rear camera

Standard: 1
Resolution: 108 Mpx
Aperture: ƒ/ 1.75
Sensor: Samsung HM6
Type: ISOCELL
Sensor size: 1/1.67"
Pixel size: 0.64 µm
Pixel Binning: 1-9 (3x3)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B26 (850), B28b (700), B28a (700), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B5 (850), B6 (800), B8 (900), B19 (800)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax)

Battery

Capacity: 5000 mAh
Type: Li-Polymer
Fast charge: Yes , 67.0W
Others: Non-removable

Software

Operating System: Android 15 RealmeUI 6.0 (Android 15)
Google Services: With Google Mobile Services
Widevine L1: Yes
