OnePlus Ace 5 · Unboxing TN

Technical sheet

Brand

Brand: OnePlus
Aliases: PKG110
Best Sellers: OnePlus 15 From € 764 OnePlus 15R From € 556 OnePlus Nord CE5 From € 279 OnePlus Nord 6 From € 405 OnePlus Nord 5 From € 313

Release Date

Release date: December 2024, 1 year ago
Launch price: CN¥ 2,999.00 ($ 447.31)

Design & Materials

Image gallery

Image gallery

Structure

Size: 75.8 mm • 161.7 mm • 8.0 mm
Weight: 206 g
Usable surface: 91 %
Materials: Aluminium alloy , Glass
Resistance certificates (dust, water): IP65

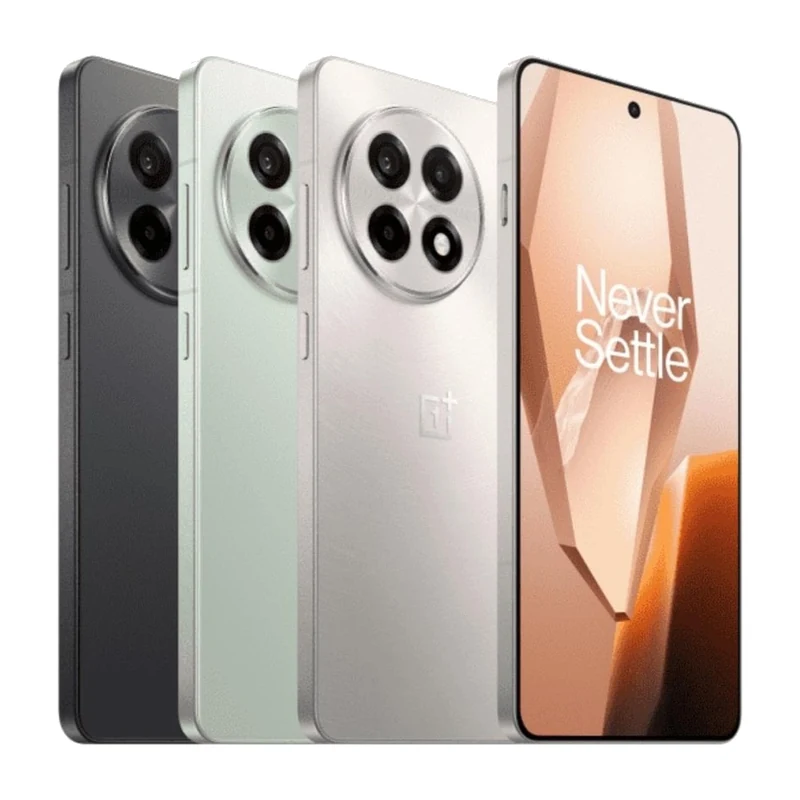

Colors: Black Green Sand

Screen

Diagonal: 6.78"
Type: AMOLED 8T
Aspect Ratio: 20:9
Resolution: 1264 x 2780 px • UHD
Density: 450 ppi • Very high density
Others: Hole-punch Notch SGS Certified Eye Care Display 1-120 Hz refresh rate 2160 Hz PWM Touch sampling rate 240 Hz Brightnes 800 cd/m² (typ) Max brightness HBM - 1600 cd/m² Peak brightness - 4500 cd/m² TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 10 Bits panel Dolby Vision Scratch resistant Capacitive Multi-touch Frameless LTPO (Low Temperature PolySilicon oxide)

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8 Gen3
CPU: 1x3.3GHz Cortex•X4 + 3x3.2 GHz Cortex•A720 + 2x3.0 GHz Cortex•A720 + 2x2.3 GHz Cortex•A520
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.3 GHz
64 Bits: Yes

Graphics

GPU: Adreno 750

RAM

RAM: 16 GB

Camera

Triple rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony IMX906
Type: CMOS BSI 2
Sensor size: 1/1.56"
Pixel size: 1.00 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n8 (900), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B8 (900), B18 (800), B19 (800), B26 (850), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B66 (1700/2100)
3G: B1 (2100), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800)
2G: CDMA BC0 (800), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)

Battery

Capacity: 6415 mAh
Type: Si-Carbon Li-Ion
Fast charge: Yes , 80.0W
Others: Non-removable

Software

Operating System: Android 15 ColorOS 15 (Android 15)
Google Services: Without Google Mobile services
Updates: OS updates: 2 years Security updates: 3 years
