Motorola Edge 70 Max · Unboxing TN

Technical sheet

Brand

Brand: Motorola
Best Sellers: Motorola Edge 70 Pro From € 472 motorola Edge 70 fusion From € 284 Motorola Edge 60 Neo From € 390 Motorola Edge 60 Pro From € 449 Motorola Moto G86 Power

Release Date

Release date: July 2026, 2 months ago

Design & Materials

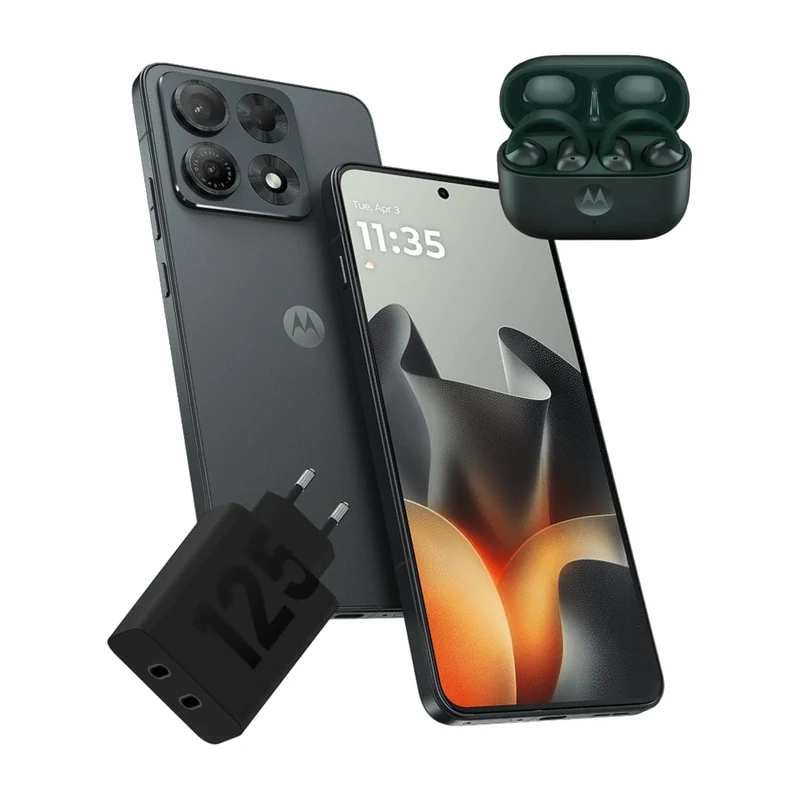

Image gallery

Image gallery

Structure

Size: 77.0 mm • 163.0 mm • 8.3 mm
Weight: 221 g
Usable surface: 90 %
Materials: Aluminium alloy , Corning Gorilla Glass 7i
Resistance certificates (dust, water): IP68, IP69 , MIL-STD-810H
Colors: Black Blue Gray

Screen

Diagonal: 6.82"
Type: AMOLED
Aspect Ratio: 19.5:9
Resolution: 1440 x 3168 px • WQHD+
Density: 510 ppi • Very high density
Others: Hole-punch Notch SGS Certified Refresh rate 144 Hz Refresh rate 165 Hz Touch sampling rate 360 Hz Peak brightness - 7000 cd/m² HDR10+ DCI-P3 10 Bits panel Dolby Vision Scratch resistant Corning Gorilla Glass 7i Capacitive Multi-touch Frameless LTPO (Low Temperature PolySilicon oxide)

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8 Gen 5
CPU: 2x 3.8 GHz + 6x 3.32 GHz
Type: Octa-Core
Nanometer: 3 nm
Frequency: 3.8 GHz
64 Bits: Yes

Graphics

GPU: Adreno 829

RAM

RAM: 8 GB

Camera

Double rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony LYT-710
Type: CMOS
Sensor size: 1/1.56"
Pixel size: 1.22 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n71 (600), n75 (1500), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B18 (800), B19 (800), B20 (800), B25 (1900+), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3700), B66 (1700/2100), B71 (600)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards

Battery

Capacity: 7100 mAh
Type: Si-Carbon Li-Ion
Fast charge: Yes , 90.0W
Others: Wireless charging Reverse charging Non-removable
Extra: Wireless charging 25W 5W reverse wired

Software

Operating System: Android 16 Android 16
Google Services: With Google Mobile Services
Updates: OS updates: 3 years Security updates: 3 years
