Motorola Edge 30 Neo · Unboxing TN

Technical sheet

Brand

Brand: Motorola
Best Sellers: Motorola Edge 70 Pro From € 472 motorola Edge 70 fusion From € 284 Motorola Edge 60 Neo From € 378 Motorola Edge 60 Pro From € 449 Motorola Moto G86 Power

Release Date

Release date: September 2022, 4 years ago

Design & Materials

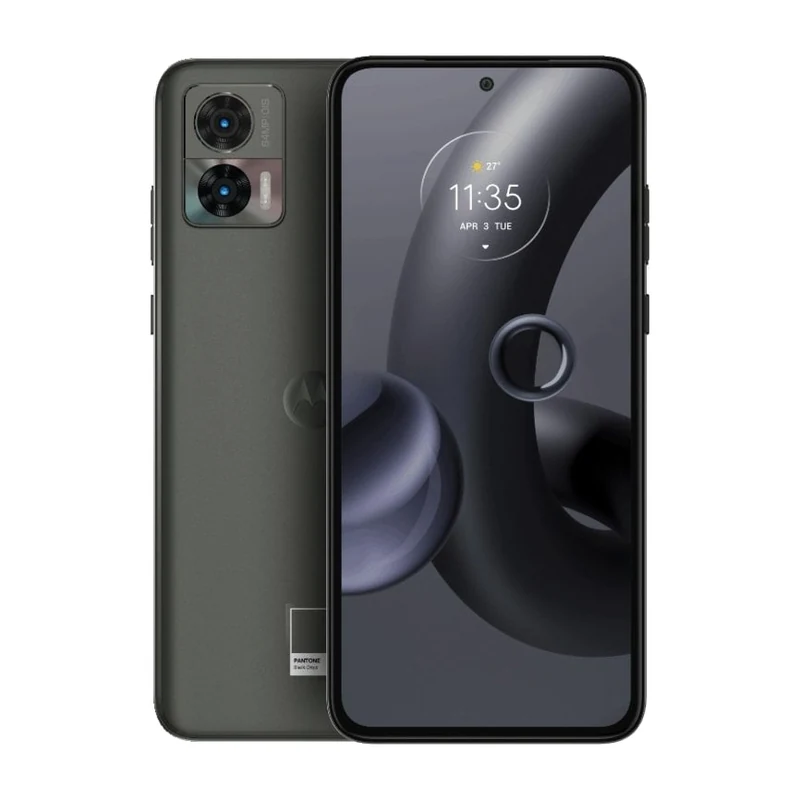

Image gallery

Image gallery

Structure

Size: 71.2 mm • 152.9 mm • 7.8 mm
Weight: 155 g
Usable surface: 87 %
Materials: Plastic
Resistance certificates (dust, water): IP52
Colors: Black Silver Purple Green

Screen

Diagonal: 6.28"
Type: pOLED
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 419 ppi • Very high density
Others: Hole-punch Notch Refresh rate 120 Hz Touch sampling rate 240 Hz DCI-P3 10 Bits panel Scratch resistant 2.5D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 695 (SM6375)
CPU: 2x2.2 GHz Kryo 660 Gold +6x1.7 GHz Kryo 660 Silver
Type: Octa-Core
Nanometer: 6 nm
Frequency: 2.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 619

RAM

RAM: 8 GB

Camera

Double rear camera

Standard: 1
Resolution: 64 Mpx
Aperture: ƒ/ 1.8
Sensor: Omnivision OV64B
Type: CMOS
Sensor size: 1/2"
Pixel size: 0.70 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3700)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac

Battery

Capacity: 4020 mAh
Type: Li-Polymer
Fast charge: Yes , 68.0W
Others: Wireless charging Non-removable
Extra: Wireless charge 5W

Software

Operating System: Android 14 Upside-down cake Android 14
Google Services: With Google Mobile Services
