Motorola Edge 2024 · Unboxing TN

Technical sheet

Brand

Brand: Motorola
Aliases: Motorola Edge (gen 5)
Best Sellers: Motorola Edge 70 Pro From € 472 motorola Edge 70 fusion From € 284 Motorola Edge 60 Neo From € 378 Motorola Edge 60 Pro From € 449 Motorola Moto G86 Power

Release Date

Release date: June 2024, 2 years ago

Design & Materials

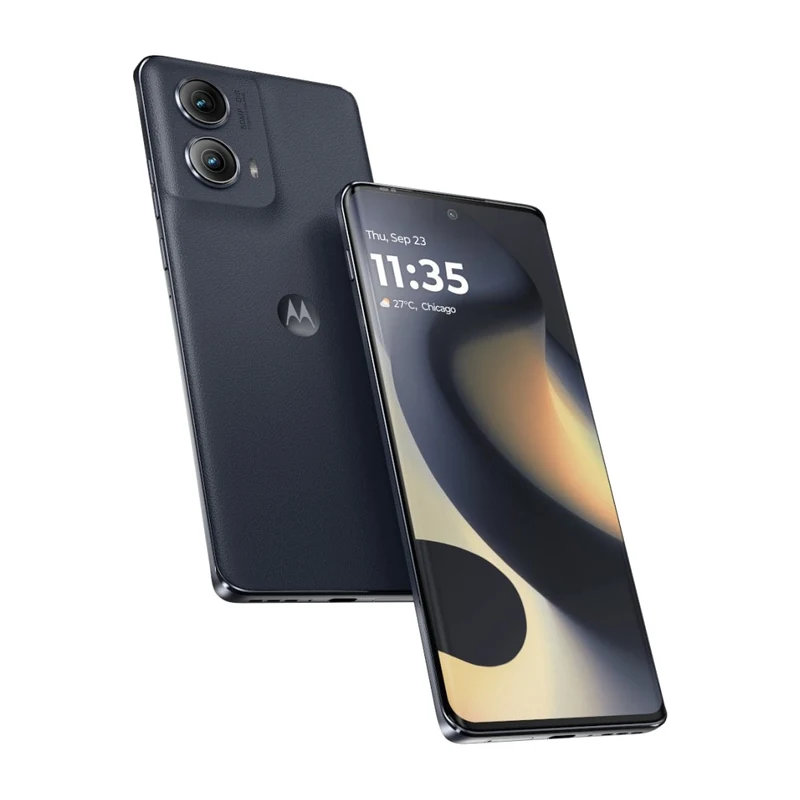

Image gallery

Image gallery

Structure

Size: 72.0 mm • 159.6 mm • 8.1 mm
Weight: 174 g
Usable surface: 91 %
Materials: Polycarbonate , Faux leather
Resistance certificates (dust, water): IP68
Colors: Blue Cyan Metallic Rose

Screen

Diagonal: 6.6"
Type: pOLED
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 393 ppi • High Density
Others: Hole-punch Notch SGS Certified Refresh rate 144 Hz Touch sampling rate 360 Hz Peak brightness - 1300 cd/m² 5000000:1 contrast ratio HDR10+ DCI-P3 10 Bits panel Scratch resistant Corning Gorilla Glass 3 Dual Edge display 3D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 7s Gen2 (SM-7435AB)
CPU: 4x2.4GHz Cortex A78 +4x1.95GHz Cortex A55
Type: Octa-Core
Nanometer: 4 nm
Frequency: 2.4 GHz
64 Bits: Yes

Graphics

GPU: Adreno 710

RAM

RAM: 8 GB

Camera

Double rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony LYT-700C
Type: CMOS
Sensor size: 1/1.56"
Pixel size: 1.00 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n12 (700), n14 (700), n20 (800), n26 (850), n29 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n70 (1700), n71 (600), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B29 (700), B30 (2300), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B48 (TDD 3600), B66 (1700/2100), B71 (600)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + eSIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Battery

Capacity: 5000 mAh
Type: Li-Polymer
Fast charge: Yes , 68.0W
Others: Wireless charging Reverse charging Non-removable
Extra: 15W wireless charging

Software

Operating System: Android 15 Android 15
Google Services: With Google Mobile Services
Updates: OS updates: 3 years Security updates: 3 years
