Motorola Moto Edge 20 · Unboxing TN

Technical sheet

Brand

Brand: Motorola
Best Sellers: Motorola Edge 70 Pro From € 472 motorola Edge 70 fusion From € 284 Motorola Edge 60 Neo From € 390 Motorola Edge 60 Pro From € 449 Motorola Moto G86 Power

Release Date

Release date: July 2021, 5 years ago

Design & Materials

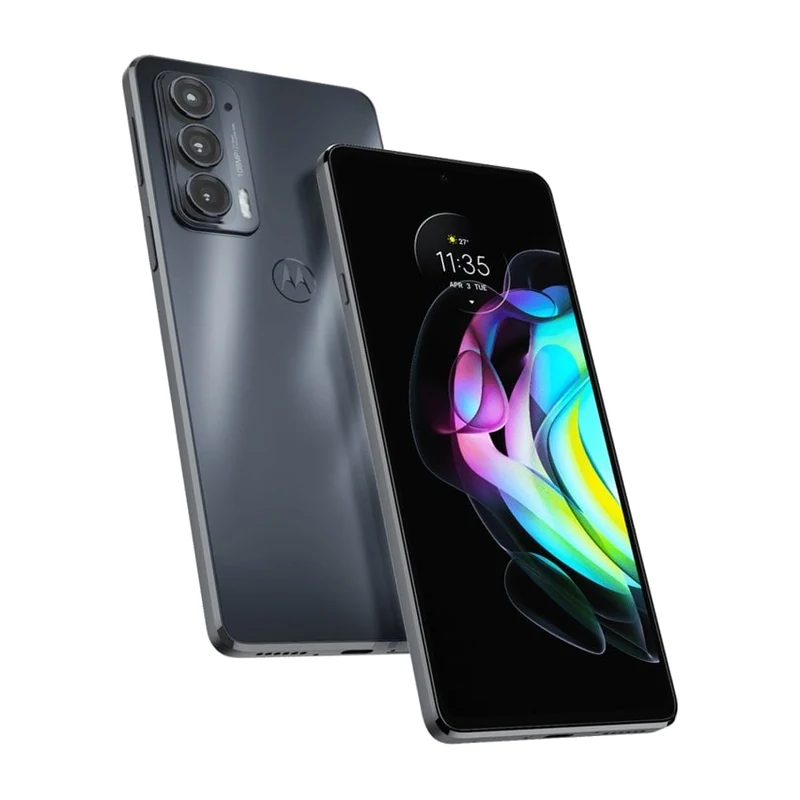

Image gallery

Image gallery

Structure

Size: 76.0 mm • 163.0 mm • 7.0 mm
Weight: 163 g
Usable surface: 87 %
Materials: Polycarbonate , Aluminium
Resistance certificates (dust, water): IP52
Colors: White Gray

Screen

Diagonal: 6.7"
Type: Oled
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 393 ppi • High Density
Others: Hole-punch Notch Refresh rate 144 Hz HDR10+ DCI-P3 Scratch resistant Corning Gorilla Glass 3 2.5D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 778G (SM7325)
CPU: 1×Cortex•A78 2.4GHz + 3×Cortex•A78 2.2GHz+ 4xCortex•A55 1.9 GHz
Type: Octa-Core
Nanometer: 6 nm
Frequency: 2.4 GHz
64 Bits: Yes

Graphics

GPU: Adreno 642L

RAM

RAM: 8 GB

Camera

Triple rear camera

Standard: 1
Resolution: 108 Mpx
Aperture: ƒ/ 1.9
Sensor: Samsung S5KHM2
Type: ISOCELL
Sensor size: 1/1.52"
Pixel size: 0.70 µm
Pixel Binning: 1-9 (3x3)
Flash: Dual LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n7 (2600), n8 (900), n28b (700), n28a (700), n38 (2600), n41 (2500), n66 (1700), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B20 (800), B26 (850), B28b (700), B28a (700), B32 (1500), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax)

Battery

Capacity: 4020 mAh
Type: Li-Polymer
Fast charge: Yes , 30.0W
Others: Reverse charging Non-removable

Software

Operating System: Android 12 Snow Cone Android 12
Google Services: With Google Mobile Services
