Blackview Oscal Pilot 1 · Unboxing TN

Technical sheet

Brand

Brand: Blackview
Best Sellers: Blackview Oscal Pilot 8 5G From € 389 Blackview XPLORE X1 From € 264 Blackview Oscal Pilot 6 From € 287 Blackview WAVE 7C From € 89 Blackview Shark 8

Release Date

Release date: January 2025, 1 year ago

Design & Materials

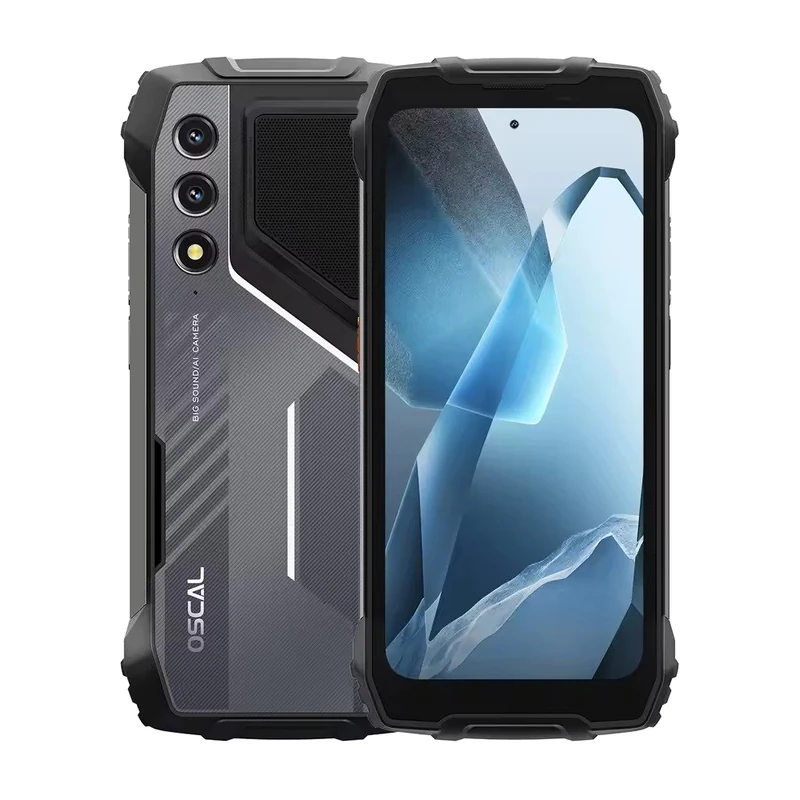

Image gallery

Image gallery

Structure

Size: 85.0 mm • 185.5 mm • 22.0 mm
Weight: 540 g
Usable surface: 68 %
Materials: Rugged Smartphone, Polycarbonate
Resistance certificates (dust, water): IP68, IP69 , MIL-STD-810H
Colors: Black Orange
Repairability: Class A B C D E
Drop resistance: Class A B C D E • 270 drops without defects

Screen

Diagonal: 6.67"
Type: LCD IPS
Aspect Ratio: 20:9
Resolution: 720 x 1604 px • HD+
Density: 264 ppi • Medium Density
Others: Hole-punch Notch Glove touch support Refresh rate 90 Hz Max brightness HBM - 700 cd/m² Scratch resistant Corning Gorilla Glass 5 Capacitive Multi-touch

Performance & Hardware

Processor

Model: MediaTek Helio G81 (MT6769)
CPU: 2x Cortex•A75 2.0 GHz + 6x Cortex•A55 1.7 GHz
Type: Octa-Core
Nanometer: 12 nm
Frequency: 2 GHz
64 Bits: Yes

Graphics

GPU: ARM Mali-G52 MC2

RAM

RAM: 6 GB

Camera

Double rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: Samsung S5KJN1
Type: ISOCELL
Sensor size: 1/2.76"
Pixel size: 0.64 µm
Pixel Binning: 1-4 (2x2)
Flash: Quad LED

Connectivity

Bands

4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B19 (800), B20 (800), B28b (700), B28a (700), B38 (TDD 2600), B40 (TDD 2300), B41 (TDD 2500), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac
Others: Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display

Battery

Capacity: 15000 mAh
Type: Li-Polymer
Fast charge: Yes , 33.0W
Others: Reverse charging Non-removable
Efficiency: A G A
Runtime per charge: ~ 167h
Charge cycles: 800 cycles

Software

Operating System: Android 14 Upside-down cake Doke OS 4.0 (Android 14)
Google Services: With Google Mobile Services
Widevine L1: Yes
