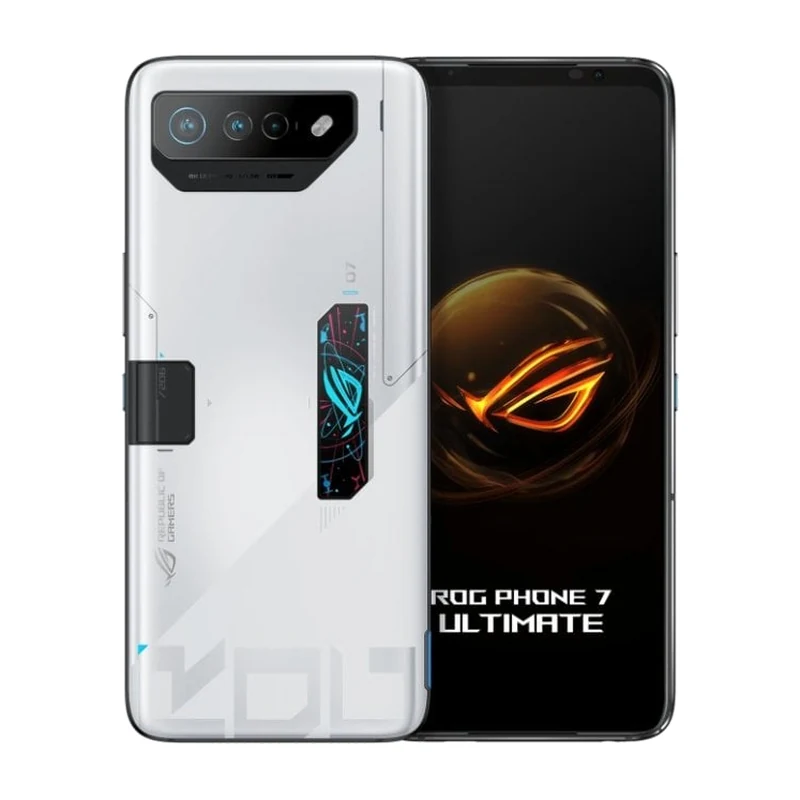

ASUS Rog Phone 7 Ultimate · Unboxing TN

Technical sheet

Brand

Brand: Asus
Aliases: Asus ROG Phone 7 Pro, AI2205_B
Best Sellers: Asus ZenFone Pegasus 4A Asus Rog Phone 9 FE Asus ZenFone Max (2016) Asus ZenFone Max Asus ZenFone 4 Max ZC520KL

Release Date

Release date: April 2023, 3 years ago

Design & Materials

Image gallery

Image gallery

Structure

Size: 77.0 mm • 173.0 mm • 10.3 mm
Weight: 246 g
Usable surface: 82 %
Materials: Glass , Corning Gorilla Glass
Resistance certificates (dust, water): IP54
Colors: Black White

Screen

Diagonal: 6.78"
Type: AMOLED Samsung
Aspect Ratio: 20:9
Resolution: 1080 x 2448 px • FHD+
Density: 380 ppi • High Density
Others: Without Notch Eye Care Display Refresh rate 165 Hz Touch sampling rate 720 Hz Peak brightness - 1500 cd/m² Max brightness HBM - 1000 cd/m² Always-On Display TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 DC dimming sRGB standard NTSC Color LED Notifications Scratch resistant Corning Gorilla Glass Victus Capacitive Multi-touch Physical buttons 1 ms response time Oleophobic coating

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8 Gen2
CPU: 1x3.2GHz Cortex•X3 + 2x2.8 GHz Cortex•A715 + 2x2.8 GHz Cortex•A710 + 3x2.02 GHz Cortex•A510
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 740

RAM

RAM: 16 GB

Camera

Triple rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.9
Sensor: Sony IMX766
Type: CMOS
Sensor size: 1/1.56"
Pixel size: 1.00 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n18 (850), n20 (800), n25 (1900), n26 (850), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n77 (3700), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3700), B48 (TDD 3600), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800)
2G: B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Battery

Capacity: 6000 mAh
Type: Li-Polymer
Fast charge: Yes , 65.0W
Others: Bypass Charging Reverse charging Non-removable
Extra: USB power adapter (65-Watt) / 30-watt in India 10W reverse wired

Software

Operating System: Android 15 Android 15
Google Services: With Google Mobile Services
