Apple iPhone 12 mini · Unboxing TN

Technical sheet

Brand

Brand: Apple
Aliases: A2403
Best Sellers: Apple iPhone 17 Pro Max From € 1189 Apple iPhone 17 From € 919 Apple iPhone 17 Pro From € 1099 Apple iPhone 16 Plus From € 879 Apple iPhone 15 From € 579

Release Date

Release date: October 2020, 5 years ago

Design & Materials

Image gallery

Image gallery

Structure

Size: 64.2 mm • 131.5 mm • 7.4 mm
Weight: 135 g
Usable surface: 84 %
Materials: Glass , Aluminium
Resistance certificates (dust, water): IP68

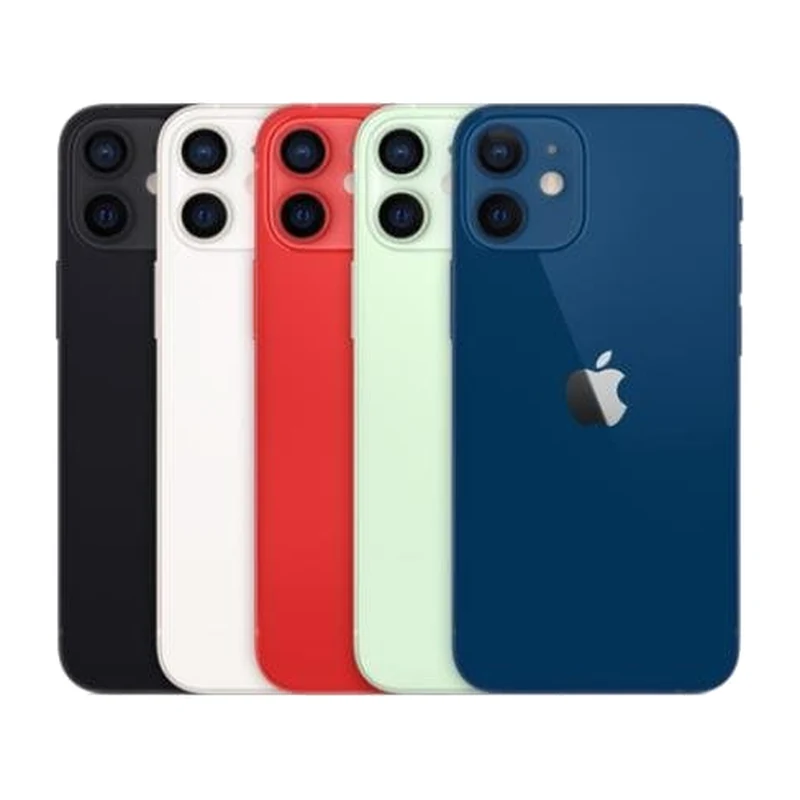

Colors: Black White Blue Red Green

Screen

Diagonal: 5.4"
Type: Oled
Aspect Ratio: 19.5:9
Resolution: 1080 x 2340 px • FHD+
Density: 477 ppi • Very high density
Others: Wide screen notch Brightnes 625 cd/m² (typ) Peak brightness - 1200 cd/m² 2000000:1 contrast ratio HDR DCI-P3 Wide Color display (P3) True Tone display Super Retina XDR Scratch resistant Corning Gorilla Glass Capacitive Multi-touch Oleophobic (lipophobic) coating Frameless Haptic Touch

Performance & Hardware

Processor

Model: Apple A14 Bionic
CPU: 2x Icestorm 3.1 GHz + 4x Firestorm 1.8 GHz
Type: Hexa-Core
Nanometer: 5 nm
Frequency: 3.1 GHz
64 Bits: Yes

Graphics

GPU: Apple 4-core graphics processing unit A14 GPU

RAM

RAM: 4 GB

Camera

Double rear camera

Standard: 1
Resolution: 12 Mpx
Aperture: ƒ/ 1.6
Sensor: Sony IMX503
Type: CMOS
Sensor size: 1/2.55"
Pixel size: 1.40 µm
Flash: LED
Optical Stabilisation: Yes

Connectivity

Bands

5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n77 (3700), n78 (3500), n79 (4700)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B30 (2300), B32 (1500), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B46 (TDD 900), B48 (TDD 3600), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: CDMA2000 EV-DO REV.A, CDMA BC0 (800), CDMA BC1 (1900), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM / eSIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Battery

Capacity: 2227 mAh
Type: Li-Ion
Fast charge: Yes , 20.0W
Others: Wireless charging Non-removable
Extra: * Unconfirmed capacity 20W adapter sold separately MagSafe wireless charging up to 15W10 Qi wireless charging up to 7.5W

Software

Operating System: iOS 18 iOS 18
