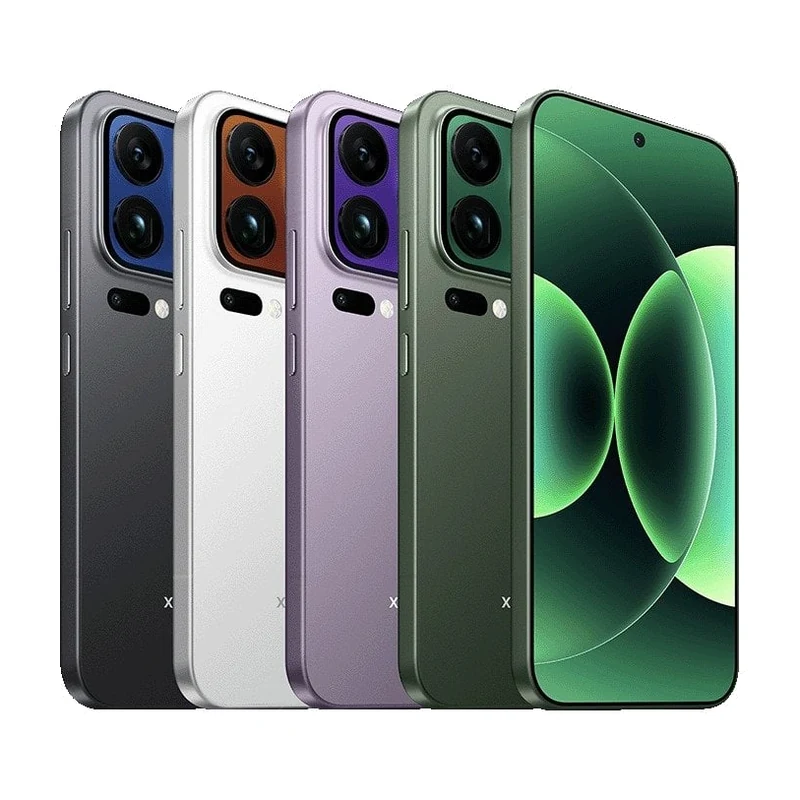

Xiaomi 17 Pro Max

Image gallery

Image gallery

Structure

Size

77.6 mm • 162.9 mm • 8.0 mm

Weight

219 g

Usable surface

92 %

Materials

Aluminium alloy , Titanium

Resistance certificates (dust, water)

IP68, IP69

Colors

Black White Green Violet

Screen

Diagonal

6.9"

Type

AMOLED

Aspect Ratio

20:9

Resolution

1200 x 2608 px • QHD

Density

416 ppi • Very high density

Others

Hole-punch Notch 1-120 Hz refresh rate TÜV Rheinland Flicker-free Certified TÜV Low Blue Light Variable refresh rate 1 Hz Peak brightness - 3500 cd/m² Always-On Display TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 DC dimming 12 Bits panel (10-bit +2-bit FRC) Dolby Vision Scratch resistant Xiaomi Longjing Glass Capacitive Multi-touch Frameless LTPO (Low Temperature PolySilicon oxide)

Processor

Model

Qualcomm Snapdragon 8 Elite Gen 5

CPU

2x4.61 GHz ARM + 6x3.63 GHz ARM

Type

Octa-Core

Nanometer

3 nm

Frequency

4.61 GHz

64 Bits

Yes

Graphics

GPU

Adreno 840 1.2 GHz

RAM

RAM

12 GB

Type

RAM LPDDR5X

Antutu

Score

4.027.702 • Antutu v11 Overall performance better than 99% of devices

Storage

Capacity

512 GB

Type

UFS Storage 4.1

SD Slot

No

Security

Fingerprint

Yes, in screen

Sensors

Fingerprint

Yes

Proximity

Yes

Light sensor

Yes

Accelerometer

Yes

Compass

Yes

Gyroscope

Yes

Barometer

Yes

Hall

Yes

RGB

Yes

Audio

Dolby Atmos Hi-Res Audio Stereo Speakers 4 microphones

Notifications LED

Triple rear camera

Standard

1

Resolution

50 Mpx

Aperture

ƒ/ 1.69

Sensor

Omnivision 950L LightHunter

Type

CMOS

Sensor size

1/1.28"

Pixel size

1.22 µm

Pixel Binning

1-4 (2x2)

Flash

Dual LED

Optical Stabilisation

Yes

Slow Motion Video

Yes, 1920 fps

Features

Tracking AF Flicker sensor Noise reduction Time-Lapse 4K Video 8K Video Digital zoom Optical zoom Triple camera Digital image stabilization Optical Stabilization (OIS) Ultra stable video Autofocus Touch focus Continuous autofocus Manual focus Phase detection autofocus (PDAF) Laser autofocus (LAF) Continuous shooting Geotagging Panorama HDR Face detection White balance settings ISO settings Exposure compensation Scene mode Self-timer Night Mode RAW 14 bits

Selfie

Resolution

50 Mpx

Aperture

ƒ/ 2.2

Sensor

Omnivision OV50M

Type

CMOS

Sensor size

1/2.76"

Pixel size

0.61 µm

Pixel Binning

1-4 (2x2)

Bands

5G

n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n26 (850), n28b (700), n28a (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700), n71 (600), n77 (3700), n78 (3500), n79 (4700), n80 (1800), n84 (2100)

4G LTE

B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B48 (TDD 3600), B66 (1700/2100), B71 (600)

3G

B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B6 (800), B8 (900), B19 (800)

2G

B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type

Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards

802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)

Others

Dual band Wi-Fi Hotspot Wi-Fi Direct Wi-Fi Display Wi-Fi MiMO

Bluetooth

Version

Bluetooth 5.4 LELow energy consumption

Profiles

A2DP (Advanced Audio Distribution Profile) LE (Low Energy) APT-x LDAC SBC AAC Apt-x Adaptive

Navigation

Supports

GPS, A-GPS, GLONASS, Beidou, QZSS, GPS (L1+L5), GLONASS (L1), BeiDou (B1), Galileo (E1+E5a), BeiDou (B2), NavIC System, QZSS (L1 + L5)

USB

Charging

Yes

Mass Storage

Yes

USB On-The-Go (OTG)

Yes

USB Type C

Yes

USB Host 3.2

Yes

SAR

--

--
