Technical sheet

Brand

Brand: OnePlus
Aliases: PJE110, 一加 Ace 3
Best Sellers: OnePlus 15 From € 764 OnePlus 15R From € 556 OnePlus Nord CE5 From € 279 OnePlus Nord 6 From € 405 OnePlus Nord 5 From € 313

Release Date

Release date: January 2024, 2 years ago
Launch price: CN¥ 2,599.00 ($ 388.19)

Design & Materials

Image gallery

Image gallery

Structure

Size: 75.3 mm • 163.3 mm • 8.8 mm
Weight: 207 g
Usable surface: 90 %
Materials: Glass , Metal

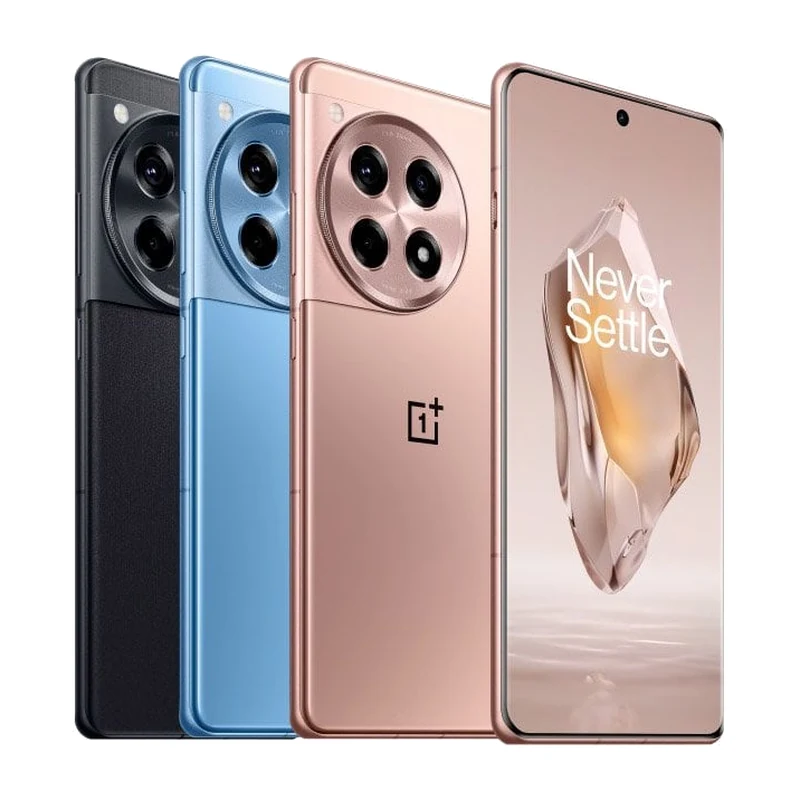

Colors: Black Blue Bronze

Screen

Diagonal: 6.78"
Type: AMOLED BOE X1
Aspect Ratio: 20:9
Resolution: 1264 x 2780 px • WQHD+
Density: 450 ppi • Very high density
Others: Hole-punch Notch 1-120 Hz refresh rate Refresh rate 120 Hz Touch sampling rate 360 Hz Max brightness HBM - 800 cd/m² Peak brightness - 1600 cd/m² TÜV Rheinland Eye Comfort Certification HDR10+ DCI-P3 DisplayMate A+ Dolby Vision Scratch resistant Dual Edge display Corning Gorilla Glass Victus 2 Capacitive Multi-touch Frameless LTPO 4.0 (Low Temperature PolySilicon oxide)

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8 Gen2
CPU: 1x3.2GHz Cortex•X3 + 2x2.8 GHz Cortex•A715 + 2x2.8 GHz Cortex•A710 + 3x2.02 GHz Cortex•A510
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 740

RAM

RAM: 12 GB

Camera

Triple rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.8
Sensor: Sony IMX890
Type: CMOS
Sensor size: 1/1.56"
Pixel size: 1.00 µm
Pixel Binning: 1-4 (2x2)
Flash: Dual LED

Connectivity

Bands

5G: n1 (2100), n3 (1800), n5 (850), n8 (900), n28a (700), n41 (2500), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B8 (900), B18 (800), B19 (800), B26 (850), B28a (700), B34 (TDD 2100), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500)
3G: B1 (2100), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: CDMA BC0 (800), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Standards: 802.11a , 802.11b , 802.11g , 802.11n , 802.11n 5GHz , 802.11ac, WiFi 6 (802.11ax) , WiFi 7 (802.11be)

Battery

Capacity: 5500 mAh
Type: Lithium
Fast charge: Yes , 100.0W
Others: Reverse charging Non-removable

Software

Operating System: Android 14 Upside-down cake Android 14
Google Services: Without Google Mobile services
Updates: OS updates: 2 years Security updates: 3 years
