Technical sheet

Brand

Brand: Motorola
Aliases: XT2301-5, Motorola Edge 40 Pro
Best Sellers: Motorola Edge 70 Pro From € 472 motorola Edge 70 fusion From € 284 Motorola Edge 60 Neo From € 390 Motorola Edge 60 Pro From € 449 Motorola Moto G86 Power

Release Date

Release date: December 2022, 3 years ago

Design & Materials

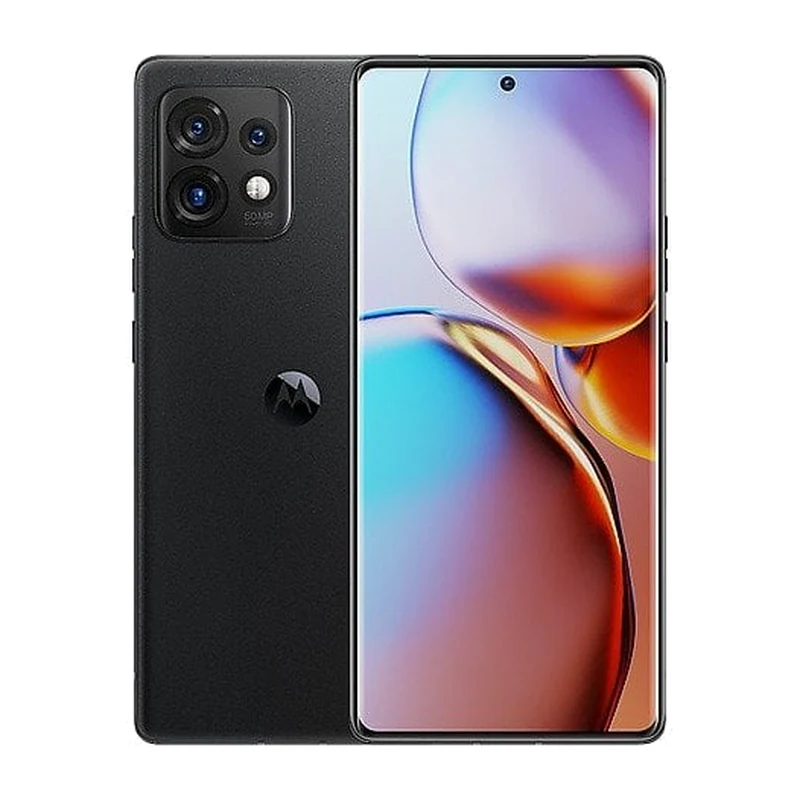

Image gallery

Image gallery

Structure

Size: 74.0 mm • 161.2 mm • 8.6 mm
Weight: 199 g
Usable surface: 90 %
Materials: Aluminium alloy , Corning Gorilla Glass Victus
Resistance certificates (dust, water): IP68
Colors: Black Blue

Screen

Diagonal: 6.7"
Type: Oled
Aspect Ratio: 20:9
Resolution: 1080 x 2400 px • FHD+
Density: 393 ppi • High Density
Others: Hole-punch Notch SGS Certified Refresh rate 165 Hz 5000000:1 contrast ratio Always-On Display HDR10+ DCI-P3 DC dimming 100% NTSC 10 Bits panel Scratch resistant Dual Edge display 3D curved glass screen Capacitive Multi-touch Frameless

Performance & Hardware

Processor

Model: Qualcomm Snapdragon 8 Gen2
CPU: 1x3.2GHz Cortex•X3 + 2x2.8 GHz Cortex•A715 + 2x2.8 GHz Cortex•A710 + 3x2.02 GHz Cortex•A510
Type: Octa-Core
Nanometer: 4 nm
Frequency: 3.2 GHz
64 Bits: Yes

Graphics

GPU: Qualcomm Adreno 740

RAM

RAM: 8 GB

Camera

Triple rear camera

Standard: 1
Resolution: 50 Mpx
Aperture: ƒ/ 1.9
Sensor: Omnivision OV50A
Type: CMOS
Sensor size: 1/1.55"
Pixel size: 1.00 µm
Pixel Binning: 1-4 (2x2)
Flash: LED

Connectivity

Bands

5G: n1 (2100), n2 (1900 PCS), n3 (1800), n5 (850), n7 (2600), n8 (900), n20 (800), n28a (700), n38 (2600), n40 (2300), n41 (2500), n66 (1700), n77 (3700), n78 (3500)
4G LTE: B1 (2100), B2 (1900), B3 (1800), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B18 (800), B19 (800), B20 (800), B25 (1900+), B26 (850), B28b (700), B28a (700), B32 (1500), B38 (TDD 2600), B39 (TDD 1900), B40 (TDD 2300), B41 (TDD 2500), B42 (TDD 3500), B43 (TDD 3700), B48 (TDD 3600), B66 (1700/2100)
3G: B1 (2100), B2 (1900), B4 (1700/2100 AWS A-F), B5 (850), B8 (900)
2G: CDMA BC0 (800), B2 (1900), B3 (1800), B5 (850), B8 (900)

SIM card

Type: Dual SIM Dual Standby (Nano SIM + Nano SIM) SIM cards (MiniSIM) can be cut to MicroSIM, MicroSIM can be cut to NanoSIM and a SIM can even be cut to a NanoSIM (although not recommended). Download this SIM Cutting Template and forget about having to ask your operator for a new SIM...

Wi-Fi

Battery

Capacity: 4600 mAh
Type: Li-Polymer
Fast charge: Yes , 125.0W
Others: Wireless charging Reverse charging Non-removable
Extra: 15W wireless 5W reverse wired

Software

Operating System: Android 13 Tiramisu Android 13
Google Services: Without Google Mobile services
